我公司生產和銷售的擴束鏡按激光波長分類主要有三種： CO2 激光擴束鏡 (10.6?m)、YAG和光纖激光擴束鏡 (1064nm、532和355nm) 和其它激光擴束準直鏡（633nm等）。按擴束鏡結構形式來分，主要有固定擴束鏡、手動微調擴束鏡、可變倍數擴束鏡等。根據客戶需要，也可以訂制各種擴束鏡。
我們一站式供應各種類型的擴束鏡,擴束器,激光擴束鏡,激光準直鏡,YAG擴束鏡,yag準直鏡,光纖激光擴束鏡,定倍YAG擴束鏡,可調擴束鏡,水冷擴束鏡,水冷可調擴束鏡,固定倍數擴束鏡,激光打標擴束鏡,1064nm擴束鏡,532nm擴束鏡,綠光激光擴束鏡,355nm擴束鏡,紫外擴束鏡,266nm擴束鏡,硒化鋅擴束鏡，可提供選型、技術指導、安裝培訓、個性定制等全生命周期、全流程服務，歡迎聯系我們的產品經理！

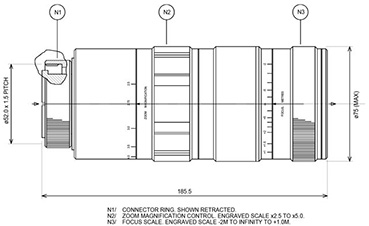

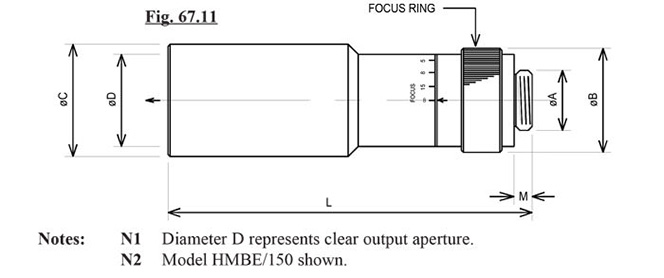

HMBE系列高功率二氧化碳擴束鏡
HMBE系列是為激光用戶設計的，這些擴束鏡的凈輸入直徑為4.3mm，放大倍數為x4.7，x5.6，x7.0和x9.4。推薦最大功率為250W。
| 型號 | 擴束倍數 | A | B | C | L | M |
| BEU-10.6-4.7ZTM-HMBE | 4.7 | 25X1P | 42 | 34 | 110 | 6 |
| BEU-10.6-5.6ZTM-HMBE | 5.6 | 25X1P | 42 | 38 | 130 | 6 |
| BEU-10.6-7.0ZTM-HMBE | 7.0 | 25X1P | 42 | 46 | 150 | 6 |
| BEU-10.6-9.4ZTM-HMBE | 9.4 | 25X1P | 42 | 46 | 188 | 6 |

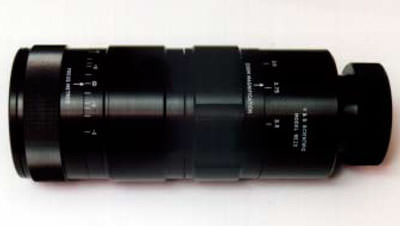

SBE系列高功率二氧化碳擴束鏡
SBE系列擴束鏡適合于2mm至12mm激光束直徑、激光功率高達1kW的應用，調焦范圍從-10m、無窮到+1.6m，出廠設置為從無窮到+2m，所有型號的擴束鏡外形是一樣的。調焦時聚焦鏡片是線形移動，并且沒有旋轉，避免了在調焦中因鏡片轉動產生的不同軸和光束強度分布的變化。在光路中使用該擴束鏡后，光束質量在很長一段光程都是相同的，所以他們特別適合大面積激光切割機。
| 型號 | 擴束倍數 | 入射通光口徑 | 輸出通光口徑 |
| BEU-10.6-2ZTM-SBE | x2.0 | 12.50mm | 25.4mm |
| BEU-10.6-2.5ZTM-SBE | x2.5 | 10.20mm | 25.4mm |
| BEU-10.6-3ZTM-SBE | x3.0 | 8.33mm | 25.4mm |
| BEU-10.6-4ZTM-SBE | x4.0 | 6.25mm | 25.4mm |
| BEU-10.6-5ZTM-SBE | x5.0 | 5.00mm | 25.4mm |
| BEU-10.6-6ZTM-SBE | x6.0 | 4.17mm | 25.4mm |
| BEU-10.6-7ZTM-SBE | x7.0 | 3.57mm | 25.4mm |

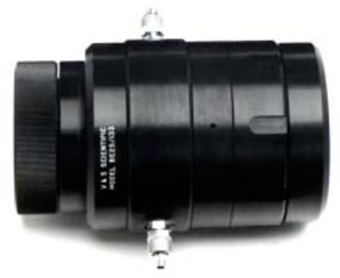

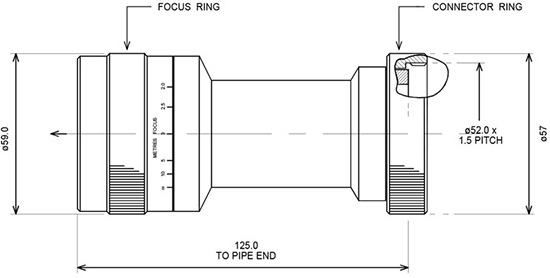

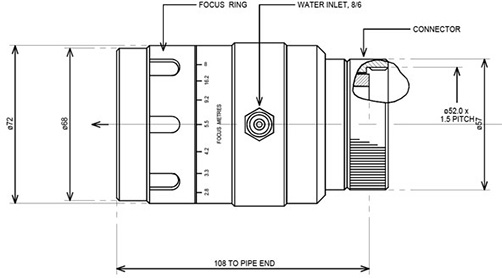

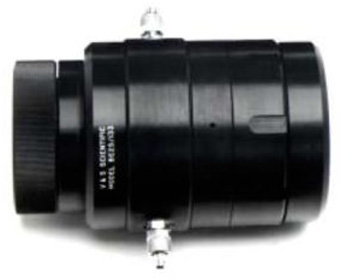

BE25系列高功率二氧化碳激光擴束鏡
BE25系列擴束鏡適合于激光功率高達2kW，這些擴束鏡是水冷的，調焦范圍從無窮到+2.8m，輸出通光口徑35mm。這些擴束鏡應用廣泛，特別適合飛行光路（光學器件運動）的激光切割機、大面積激光加工系統等。
| 型號 | 擴束倍數 | 輸入通光口徑 |
| BEU-10.6-1.33ZTM-BE25 | x 1.33 | 25.0mm |
| BEU-10.6-1.5ZTM-BE25 | x 1.50 | 23.2mm |
| BEU-10.6-1.66ZTM-BE25 | x 1.66 | 21.1mm |
| BEU-10.6-1.75ZTM-BE25 | x 1.75 | 20.0mm |
| BEU-10.6-2ZTM-BE25 | x 2.00 | 17.5mm |

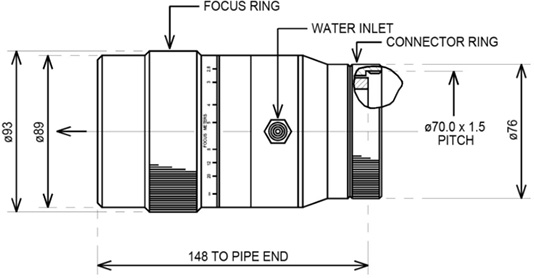

BE38系列高功率二氧化碳激光擴束鏡
BE38系列擴束鏡適合激光功率高達3kW。這些擴束鏡也是水冷的，調焦范圍從無窮到2.8m，輸入通光口徑38mm，輸出通光口徑57mm。
| 型號 | 擴束倍數 |
| BEU-10.6-1.15ZTM-BE38 | x 1.15 |
| BEU-10.6-1.25ZTM-BE38 | x 1.25 |
| BEU-10.6-1.33ZTM-BE38 | x 1.33 |
| BEU-10.6-1.5ZTM-BE38 | x 1.50 |

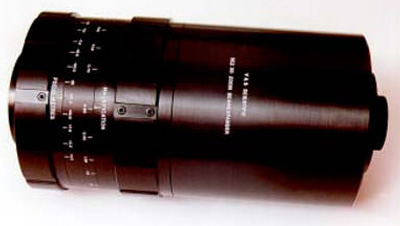

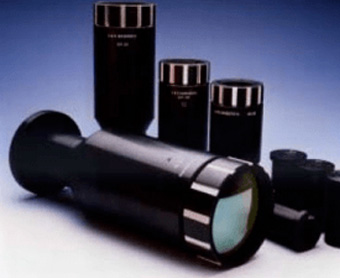

模塊式擴束鏡
CO2模塊式使用范圍廣泛，可用于科研和工業用途。我們提供了多種尺寸和放大倍數，連續激光功率可達1kW。此系列的輸出部分?jǐn)U束鏡的主體，輸出直徑可從25毫米到90毫米。將鏡片單元插入主體就形成了完整的擴束鏡。
技術規格（適用于所有型號）：
鏡片：鍍有超低吸收抗反射涂層的激光級ZnSe材料。
主體：HE30鋁，黑色陽極。
輸出孔徑：由其型號名稱定義，如“OP50”有50毫米孔徑。
輸入孔徑：由其型號名稱定義，如“IP14”有14mm孔徑。
放大倍數：由其型號名稱定義，如OP50加IP10，作為一個組合，放大倍數為50/10=x5。
性能：剩余球面像差小于λ/20。

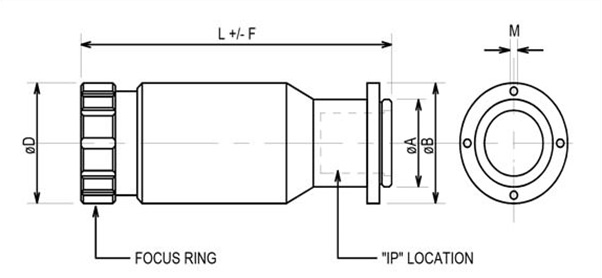

| 型號 | A | B | D | F | L | M |
| OP25 | Φ40x 1 ISO | 50 | 50 | 5 | 126 | Φ3.3 on 45 PCD |
| OP35 | Φ40x 1 ISO | 50 | 50 | 8 | 144 | Φ3.3 on 45 PCD |
| OP50 | Φ45x 1 ISO | 62 | 62 | 12 | 200 | Φ4.3 on 54 PCD |
| OP70 | Φ45x 1 ISO | 84 | 84 | 15 | 280 | Φ6.5 on 70 PCD |
| OP90 | Φ45x 1 ISO | 84 | 110 | 20 | 359 | Φ6.5 on 70 PCD |
注：長度“L”指的是無窮遠焦點
互換能力: IP20和IP25的兩個較大的“IP”只能與OP70或OP90主體一起使用。其它所有IP型號產品都適合其他所有的OP型號。如要將IP20/IP25安裝到OP70/OP90的主體上需要拆下適配器的套管。

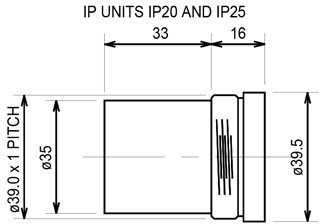

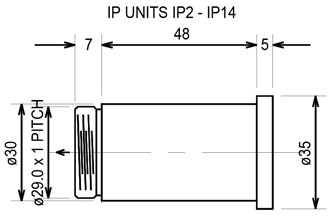

輸入元件“插件”輸入元件的大小和形狀適用于從IP3.3到IP14的IP型號。兩個較大的輸入元件IP20和IP25只能與與OP70或OP90一起使用，如下圖所示。下表列出了可匹配的型號。
| 型號 | 輸入孔徑 | 可匹配 OP型號 |
| IP3.3 | 3.5mm | 任意 |
| IP5 | 5.0mm | 任意 |
| IP7 | 7.0mm | 任意 |
| IP8.75 | 8.8mm | 任意 |
| IP10 | 10.0mm | 任意 |
| IP14 | 14.0mm | 任意 |
| IP20 | 20.0mm | 只能匹配OP70, OP90 |
| IP25 | 25.0mm | 只能匹配OP70, OP90 |
BSL系列高功率二氧化碳激光擴束鏡
BSL系列是一套緊湊，經濟的CO2激光擴束鏡，連續激光功率可達500W，可與中小型CO2激光器（例如新銳和相干激光器）一起使用。所有型號的輸入孔均為19mm，輸出通光孔徑的直徑為35.0mm，可用于將光束擴展到輸出直徑約25mm（1/e2）的極限。
| 型號 | 擴束倍數 | 輸入通光口徑 | 輸出通光口徑 | 最大入射光直徑 |
| BEU-10.6-1.3ZTM-BSL | 1.3 | 19mm | 35.0mm | 13mm |
| BEU-10.6-1.5ZTM-BSL | 1.5 | 19mm | 35.0mm | 13mm |
| BEU-10.6-2.0ZTM-BSL | 2.0 | 19mm | 35.0mm | 13mm |
| BEU-10.6-2.5ZTM-BSL | 2.5 | 19mm | 35.0mm | 10mm |
| BEU-10.6- 3.0ZTM-BSL | 3.0 | 19mm | 35.0mm | 9mm |
| BEU-10.6- 3.5ZTM-BSL | 3.5 | 19mm | 35.0mm | 7mm |
| BEU-10.6- 4.0ZTM-BSL | 4.0 | 19mm | 35.0mm | 6mm |
BEW系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 可調發散角 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-9.3-2.5-LP | 9.3μm | 2.5 | 5mm | 12.5mm | - | 25mm | 55mm | - |
| BEW-9.3-2.5Z2I | 9.3μm | 2.5 | 8mm | 20mm | ±5mm | 28mm | 57.4mm | M22X0.75 |
| BEW-9.3-3H | 9.3μm | 3 | 4mm | 12mm | - | 20mm | 61mm | - |
| BEW-9.3-3-LP | 9.3μm | 3 | 4mm | 12mm | - | 25mm | 68mm | - |
| BEW-9.3-3-LP | 9.3μm | 3 | 4mm | 12mm | - | 25mm | 68mm | M22X0.75 |
| BEW-9.3-4A | 9.3μm | 4 | 4mm | 16mm | - | 28mm | 67mm | - |
| BEW-9.3-4X-LP | 9.3μm | 4 | 3mm | 12mm | - | 25mm | 76mm | - |
| BEW-9.3-4Z1 | 9.3μm | 4 | 3mm | 12mm | ±5mm | 28mm | 71mm | M22X0.75 |
| BEW-9.3-6A | 9.3μm | 6 | 3mm | 18mm | - | 36mm | 75mm | - |
| BEW-9.3-8A-LP | 9.3μm | 8 | 3mm | 24mm | - | 36mm | 73mm | - |
| BEW-9.3-lOZli | 9.3μm | 10 | 2mm | 20mm | ±5mm | 44mm | 125mm | M22X0.75 |
| BEW-9.4-2X | 9.4μm | 2 | 8mm | 16mm | ±3mm | 28mm | 59mm | M22X0.75 |
| BEW-9.4-3Z2I | 9.4μm | 3 | 4mm | 12mm | ±5mm | 28mm | 61mm | M22X0.75 |
| BEW-9.4-3Z5 | 9.4μm | 3 | 9mm | 27mm | ±3mm | 46mm | 88mm | M22X0.75 |
| BEW-9.4-4X | 9.4μm | 4 | 3mm | 12mm | - | 28mm | 67mm | - |
| BEW-9.4-5X | 9.4μm | 5 | 3mm | 15mm | - | 30mm | 72mm | - |
| BEW-9.4-5Zli | 9.4μm | 5 | 3mm | 15mm | ±5mm | 31mm | 84mm | M22X0.75 |
| BEW-9.4-6Z1 | 9.4μm | 6 | 3mm | 18mm | ±5mm | 32mm | 76mm | M22X0.75 |
| BEW-9.4-8Zli | 9.4μm | 8 | 3mm | 24mm | ±3mm | 43mm | 139.5mm | M22X0.75 |
| BEW-10.6-IX | 10.6μm | 1 | 8mm | 8mm | ±5mm | 40mm | 54.91mm | M22X0.75 |
| BEW-10.6-1.5 | 10.6μm | 1.5 | 6mm | 9mm | - | 20mm | 34.5mm | - |
| BEW-10.6-2A | 10.6μm | 2 | 5mm | 10mm | - | 22mm | 35mm | - |
| BEW-10.6-2A-LP | 10.6μm | 2 | 5mm | 10mm | - | 22mm | 35mm | M22X0.75 |
| BEW-10.6-2Z1I | 10.6μm | 2 | 5mm | 10mm | ±5mm | 32mm | 50mm | M22X0.75 |
| BEW-10.6-2Z1I-LP | 10.6μm | 2 | 5mm | 10mm | ±5mm | 32mm | 50mm | M22X0.75 |
| BEW-10.6-2Z3I | 10.6μm | 2 | 10mm | 20 mm | ±5mm | 36mm | 48.1mm | M22X0.75 |
| BEW-10.6-2.3 | 10.6μm | 2.3 | 5mm | 11.5mm | - | 25.5mm | 55mm | — |
| BEW-10.6-2.5 | 10.6μm | 2.5 | 5mm | 12.5mm | - | 27mm | 55mm | |
| BEW-10.6-2.5-LP | 10.6μm | 2.5 | 5mm | 12.5mm | 一 | 25mm | 55mm | - |
| BEW-10.6-2.5-LP | 10.6μm | 2.5 | 5mm | 12.5mm | - | 25mm | 55mm | M22*1 |
| BEW-10.6-2.5Z1 | 10.6μm | 2.5 | 5mm | 12.5mm | - | 25mm | 55mm | M22*1 |
| BEW-10.6-2.5Z2I | 10.6μm | 2.5 | 5mm | 12.5mm | ±5mm | 28mm | 57.4mm | M22X0.75 |
| BEW-10.6-2.5ZI | 10.6μm | 2.5 | 4mm | 10mm | ±5mm | 20mm | 55.2mm | M22X0.75 |
| BEW-10.6-2.5ZII | 10.6μm | 2.5 | 4mm | 10mm | ±3mm | 20mm | 36mm | M16X0.75 |
| BEW-10.6-3H | 10.6μm | 3 | 3mm | 9mm | - | 20mm | 61mm | - |
| BEW-10.6-3-LP | 10.6μm | 3 | 5mm | 15mm | - | 25mm | 68mm | - |
| BEW-10.6-3-LP | 10.6μm | 3 | 5mm | 15mm | - | 25mm | 68mm | M22X0.75 |
| BEW-10.6-3Z1I | 10.6μm | 3 | 3mm | 9mm | ±5mm | 20mm | 59.1mm | M16X0.75 |
| BEW-10.6-3Z1I-LP | 10.6μm | 3 | 3mm | 9mm | ±5mm | 20 mm | 59.1mm | M16X0.75 |
| BEW-10.6-3Z2I | 10.6μm | 3 | 5mm | 15mm | ±5mm | 28 mm | 61mm | M22X0.75 |
| BEW-10.6-3Z2-LP | 10.6μm | 3 | 5mm | 15mm | ±5mm | 28 mm | 61mm | M22X0.75 |
| BEW-10.6-3Z5 | 10.6μm | 3 | 8mm | 24mm | ±4mm | 44mm | 75.5mm | M22X0.75 |
| BEW-10.6-3Z5-LP | 10.6μm | 3 | 8mm | 24mm | ±4mm | 44mm | 75.5mm | M22X0.75 |
| BEW-10.6-3Z6I | 10.6μm | 3 | 7mm | 21mm | ±4mm | 36mm | 64mm | M22X0.75 |
| BEW-10.6-3.3X-D8 | 10.6μm | 3.3 | 8mm | 26.4mm | ±5mm | 44mm | 81.2mm | M29X1 |
| BEW-10.6-4-LP | 10.6μm | 4 | 4mm | 16mm | - | 25mm | 76mm | |
| BEW-10.6-4-LP | 10.6μm | 4 | 4mm | 16mm | - | 25mm | 76mm | M22*0.75 |
| BEW-10.6-4X | 10.6μm | 4 | 4mm | 16mm | - | 28mm | 67mm | 一 |
| BEW-10.6-4Z1I | 10.6μm | 4 | 4mm | 16mm | ±4mm | 28mm | 71mm | M22X0.75 |
| BEW-10.6-4Z2I | 10.6μm | 4 | 4mm | 16mm | ±4mm | 28mm | 75mm | M22X0.75 |
| BEW-10.6-4Z2I | 10.6μm | 4 | 5mm | 20mm | ±5mm | 36mm | 67.3mm | M22X0.75 |
| BEW-10.6-4Z2-LP | 10.6μm | 4 | 5mm | 20mm | ±5mm | 36mm | 67.3mm | M22X0.75 |
| BEW-10.6-4.11 | 10.6μm | 4 | 3mm | 12mm | ±5mm | 20mm | 57mm | M16X0.75 |
| BEW-10.6-5-LP | 10.6μm | 5 | 3mm | 15mm | - | 25mm | 80mm | 一 |
| BEW-10.6-5-LP | 10.6μm | 5 | 3mm | 15mm | - | 25mm | 80mm | M22X0.75 |
| BEW-10.6-5Z1I | 10.6μm | 5 | 3mm | 15mm | ±5mm | 30mm | 75mm | M22X0.75 |
| BEW-10.6-6A | 10.6μm | 6 | 4mm | 24mm | - | 36mm | 75mm | - |
| BEW-10.6-6A-LP | 10.6μm | 6 | 4mm | 24mm | - | 36mm | 75mm | - |
| BEW-10.6-6X | 10.6μm | 6 | 4mm | 24mm | - | 36mm | 75mm | M22X0.75 |
| BEW-10.6-6Z2I | 10.6μm | 6 | 2mm | 12mm | ±5mm | 21.2mm | 58.45mm | M16X0.75 |
| BEW-10.6-611 | 10.6μm | 6 | 4mm | 24mm | ±5mm | 34mm | 89.5mm | M22X0.75 |
| BEW-10.6-7X | 10.6μm | 7 | 7mm | 49mm | ±5mm | 71mm | 91.8mm | M34X0.75 |
| BEW-10.6-7X-D4 | 10.6μm | 7 | 4mm | 28mm | - | 36mm | 77mm | - |
| BEW-10.6-8A | 10.6μm | 8 | 3mm | 24mm | - | 36mm | 73mm | - |
| BEW-10.6-8A-LP | 10.6μm | 8 | 3mm | 24mm | - | 36mm | 73mm | M22X0.75 |
| BEW-10.6-8ZH | 10.6μm | 8 | 3mm | 24mm | ±3mm | 43mm | 139.5mm | M22X0.75 |
| BEW-10.6-lOZli | 10.6μm | 10 | 3mm | 30mm | ±5mm | 44mm | 125mm | M22X0.75 |
| BEW-10.6-15X | 10.6μm | 15 | 2mm | 30mm | ±5mm | 53mm | 118.4mm | M30X1 |
| BEW-10.6-20X | 10.6μm | 20 | 2mm | 40mm | ±5mm | 65mm | 144mm | M25X0.75 |
BEG系列固定倍率激光擴束鏡
| 型號 | 倍數 | 波長 | 入射通光口徑 | 出射通光口徑 | 入射端擴束鏡直徑 | 出射端擴束鏡直徑 | 擴束鏡總長度 | 材料 |
| BEG-10.6-1.5 | 1.5 | 10.6μm | 13mm | 16mm | 20mm | - | 34.5mm | ZnSe |
| BEG-10.6-2A | 2 | 10.6μm | 15mm | 17mm | 22mm | - | 35mm | ZnSe |
| BEG-10.6-2B | 2 | 10.6μm | 15mm | 28mm | 36mm | - | 48.1mm | ZnSe |
| BEG-10.6-2C | 2 | 10.6μm | 10mm | 15mm | 20mm | - | 51mm | ZnSe |
| BEG-10.6-2D | 2 | 10.6μm | 10mm | 20mm | 22mm | 32mm | 50mm | ZnSe |
| BEG-10.6-2.5A | 2.5 | 10.6μm | 10mm | 20mm | 28mm | 28mm | 56mm | ZnSe |
| BEG-10.6-2.5 | 2.5 | 10.6μm | 15mm | 20mm | 27mm | - | 55mm | ZnSe |
| BEG-10.6-3A | 3 | 10.6μm | 10mm | 15mm | 20mm | 20mm | 61mm | ZnSe |
| BEG-10.6-3B | 3 | 10.6μm | 12.5mm | 20mm | 20mm | 28mm | 59mm | ZnSe |
| BEG-10.6-3C | 3 | 10.6μm | 13mm | 20mm | 20mm | 28mm | 110mm | ZnSe |
| BEG-10.6-3H | 3 | 10.6μm | 10mm | 15mm | 20mm | 20mm | 61mm | ZnSe |
| BEG-10.6-3X | 3 | 10.6μm | 11mm | 16mm | 20mm | 20mm | 59mm | ZnSe |
| BEG-10.6-4 | 4 | 10.6μm | 10mm | 20mm | 20mm | 28mm | 67mm | ZnSe |
| BEG-10.6-4A | 4 | 10.6μm | 10mm | 25mm | 20mm | 31mm | 67mm | ZnSe |
| BEG-10.6-5 | 5 | 10.6μm | 12mm | 22mm | 20mm | 30mm | 72mm | ZnSe |
| BEG-10.6-5A | 5 | 10.6μm | 12mm | 28mm | 20mm | 36mm | 70mm | ZnSe |
| BEG-10.6-6 | 6 | 10.6μm | 10mm | 28mm | 20mm | 31mm | 75mm | ZnSe |
| BEG-10.6-8 | 8 | 10.6μm | 13mm | 26mm | 20mm | 36mm | 120mm | ZnSe |
| BEG-10.6-8A | 8 | 10.6μm | 10mm | 30mm | 70mm | 36mm | 73mm | ZnSe |
BEG系列固定倍率激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射口經 | 岀射口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-2-10.6-A | 10.6μm | 2 | 10mm | 20mm | 25mm | 35.3mm | M220.75 |
| BEK-3-10.6-A | 10.6μm | 3 | 8mm | 20mm | 25mm | 65.1mm | M220.75 |
| BEK-4-10.6-A | 10.6μm | 4 | 8mm | 20mm | 25mm | 70.7mm | M220.75 |
| BEK-5-10.6-A | 10.6μm | 5 | 4mm | 20mm | 25mm | 75.2mm | M220.75 |
| BEK-6-10.6-A | 10.6μm | 6 | 8mm | 30mm | 37mm | 66.5mm | M220.75 |
| BEK-8-10.6-A | 10.6μm | 8 | 8mm | 30mm | 37mm | 69mm | M220.75 |
BEC系列固定倍率激光擴束鏡
| 型號 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 最大鏡筒長度 | 螺紋連接 | 材料 |
| BEC-9.2-9.7-D20:61.7-2.5X | 2.5x | 12.7mm | 20mm | 25mm | 61.7mm | M22*0.75 | ZnSe |
| BEC-9.2-9.7-D20:67.5-3X | 3x | 12.7mm | 20mm | 25mm | 67.5mm | M22*0.75 | ZnSe |
| BEC-9.2-9.7-D20:71-4x | 4x | 12.7mm | 20mm | 25mm | 71mm | M22*0.75 | ZnSe |
| BEC-9.2-9.7-D37:74.5-5x | 5x | 12.7mm | 37mm | 43mm | 74.5mm | M22*0.75 | ZnSe |
| BEC-9.2-9.7-D30:79-6x | 6x | 12.7mm | 30mm | 38mm | 79mm | M22*0.75 | ZnSe |
| BEC-9.2-9.7-D35:74-8x | 8x | 12.7mm | 35mm | 42mm | 74mm | M22*0.75 | ZnSe |
| BEC-10.6-D17:46.5-2x | 2x | 12.7mm | 17mm | 25mm | 46.5mm | M22*0.75 | ZnSe |
| BEC-10.6-D20:59.7-2.5x | 2.5x | 12.7mm | 20mm | 25mm | 59.7mm | M22*0.75 | ZnSe |
| BEC-10.6-D17:64.5-3x | 3x | 12.7mm | 17mm | 25mm | 64.5mm | M22*0.75 | ZnSe |
| BEC-10.6-D32:53-3.5x | 3.5x | 12mm | 32mm | 36mm | 53mm | M22*0.75 | ZnSe |
| BEC-10.6-D17:70.5-4x | 4x | 12.7mm | 17mm | 25mm | 70.5mm | M22*0.75 | ZnSe |
| BEC-10.6-D20:72-5x | 5x | 12.7mm | 20mm | 25mm | 72mm | M22*0.75 | ZnSe |
| BEC-10.6-D27:75.8-6x | 6x | 12.7mm | 27mm | 32mm | 75.8mm | M22*0.75 | ZnSe |
| BEC-10.6-D27:71-8x | 8x | 12.7mm | 27mm | 32mm | 71mm | M22*0.75 | ZnSe |
BEH系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEH-1064-1.5X | 1064nm | 1.5 | 10.4mm | 21.6mm | 27mm | 39.7mm | M22×0.75 |
| BEH-1064-2X | 1064nm | 2 | 10.4mm | 21.6mm | 27mm | 39.7mm | M22×0.75 |
| BEH-1064-3X | 1064nm | 3 | 10.4mm | 21.6mm | 27mm | 68.5mm | M22×0.75 |
| BEH-1064-4X | 1064nm | 4 | 10.4mm | 21.6mm | 27mm | 76mm | M22×0.75 |
| BEH-1064-5X | 1064nm | 5 | 10.4mm | 21.6mm | 27mm | 71.8mm | M22×0.75 |
| BEH-1064-6X | 1064nm | 6 | 6mm | 21.6mm | 27mm | 74mm | M22×0.75 |
| BEH-1064-8X | 1064nm | 8 | 6mm | 21.6mm | 27mm | 68mm | M22×0.75 |
| BEH-1064-10X | 1064nm | 10 | 6mm | 21.6mm | 27mm | 71.5mm | M22×0.75 |
| BEH-1064-12X | 1064nm | 12 | 6mm | 21.6mm | 27mm | 77.7mm | M22×0.75 |
| BEH-1064-15X | 1064nm | 15 | 6mm | 21.6mm | 27mm | 74mm | M22×0.75 |
| BEH-1064-20X | 1064nm | 20 | 6mm | 21.6mm | 27mm | 83mm | M22×0.75 |
| BEH-1064-22X | 1064nm | 22 | 6mm | 21.6mm | 27mm | 92.3mm | M22×0.75 |
BEH系列固定倍率水冷激光擴束鏡
| 倍率 | 波長 | 入射通光口徑 | 出射通光口徑 |
| 2.5X | 1064nm | 14.4 | 29.4 |
| 3X | 1064nm | 14.4 | 29.4 |
| 4X | 1064nm | 14.4 | 29.4 |
BEW系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 可調發散角 | 鏡頭長度 | 最大鏡筒外徑 | 螺紋連接 |
| BEW-1064-1.2X | 1064nm | 1.2 | 10mm | 12mm | ±5 mm | 54.93mm | 29mm | M22X0.75 |
| BEW-1064-1.5X1 | 1064nm | 1.5 | 10mm | 15mm | ±5 mm | 44.46mm | 29mm | M22X0.75 |
| BEW-1064-2X1I-V1 | 1064nm | 2 | 8mm | 16mm | ±3 mm | 58mm | 33mm | M22X0.75 |
| BEW-1064-2X1 | 1064nm | 2 | 6mm | 12mm | ±5 mm | 42mm | 26mm | M22X0.75 |
| BEW-1064-2.5X1 | 1064nm | 2.5 | 5mm | 12.5mm | ±5 mm | 84.75mm | 31mm | M22X0.75 |
| BEW-1064-3X1 | 1064nm | 3 | 5mm | 15mm | ±5 mm | 58mm | 40mm | 一 |
| BEW-1064-3X31 | 1064nm | 3 | 5mm | 15mm | ±4 mm | 58.47mm | 29mm | M22X0.75 |
| BEW-1064-4X1 | 1064nm | 4 | 4mm | 16mm | ±5 mm | 81.14mm | 29mm | M22X0.75 |
| BEW-1064-4X-LP | 1064nm | 4 | 4mm | 16mm | - | 77mm | 34mm | M22X0.75 |
| BEW-1064-4XQ | 1064nm | 4 | 5mm | 20mm | ±5 mm | 78.33mm | 35mm | M20X0.75 |
| BEW-1064-6X1 | 1064nm | 6 | 3mm | 18mm | ±5 mm | 71.29mm | 29mm | M22X0.75 |
| BEW-1064-8X1 | 1064nm | 8 | 2mm | 16mm | ±5 mm | 77.34mm | 29mm | M22X0.75 |
| BEW-1064-1OX-VI | 1064nm | 10 | 1mm | 10mm | ±5 mm | 83.5mm | 29mm | M22X0.75 |
| BEW-1064-13X | 1064nm | 13 | 1mm | 13mm | ±2 mm | 77mm | 27mm | 一 |
| BEW-1064-15X | 1064nm | 15 | 1.2mm | 18mm | - | 69.5mm | 27mm | - |
| BEW-1064-16X | 1064nm | 16 | 1mm | 16mm | - | 77.08mm | 27mm | - |
| BEW-1064-17X | 1064nm | 17 | 1mm | 17mm | - | 77mm | 27mm | - |
| BEW-1064-2OX | 1064nm | 20 | 1mm | 20mm | - | 91.5mm | 27mm | - |
BEG系列固定倍率激光擴束鏡
| 型號 | 波長 | 倍數 | 入射通光口徑 | 出射通光口徑 | 擴束鏡總長度 | 擴束鏡直徑 | 入射螺紋連接 | 出射螺紋連接 |
| BEG-1064-2X | 1064nm | 2X | 8mm | 18mm | 60.53mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-3X | 1064nm | 3X | 8mm | 18mm | 61.27mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-4X | 1064nm | 4X | 8mm | 18mm | 60.87mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-5X | 1064nm | 5X | 8mm | 18mm | 60.39mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-6X | 1064nm | 6X | 8mm | 18mm | 60.7mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-8X | 1064nm | 8X | 6mm | 18mm | 61.16mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-10X | 1064nm | 10X | 6mm | 18mm | 61.48mm | 30mm | M22X0.75 | M30X1 |
| BEG -1064-15X | 1064nm | 15X | 8mm | 18mm | 99.1mm | 30mm | M22X0.75 | - |
| BEG -1064-20X | 1064nm | 20X | 8mm | 30mm | 102.19mm | 45mm | M30X1 | M43X0.75 |
| BEG -1064-30X | 1064nm | 30X | 8mm | 32mm | 149.81mm | 45mm | M22X0.75 | M43X0.75 |
| BEG -1064-40X | 1064nm | 40X | 8mm | 100mm | 232.6mm | 112mm | M22X0.75 | - |
BEK系列固定倍率激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-1.5-1064-A | 1064nm | 1.5 | 14mm | 21mm | 25mm | 43.5mm | M220.75 |
| BEK-2-1064-A | 1064nm | 2 | 10mm | 21mm | 25mm | 42mm | M220.75 |
| BEK-2.5-1064-A | 1064nm | 2.5 | 14mm | 21mm | 25mm | 63mm | M220.75 |
| BEK-3-1064-A | 1064nm | 3 | 10mm | 21mm | 25mm | 66mm | M220.75 |
| BEK-4-1064-A | 1064nm | 4 | 10mm | 21mm | 25mm | 69mm | M220.75 |
| BEK-5-1064-A | 1064nm | 5 | 10mm | 21mm | 25mm | 65mm | M220.75 |
| BEK-6-1064-A | 1064nm | 6 | 10mm | 21mm | 25mm | 68mm | M220.75 |
| BEK-7-1064-A | 1064nm | 7 | 10mm | 21mm | 25mm | 68mm | M220.75 |
| BEK-8-1064-A | 1064nm | 8 | 10mm | 21mm | 25mm | 70mm | M220.75 |
| BEK-10-1064-A | 1064nm | 10 | 10mm | 21mm | 25mm | 71mm | M220.75 |
| BEK-12-1064-A | 1064nm | 12 | 10mm | 21mm | 25mm | 77mm | M220.75 |
| BEK-13-1064-A | 1064nm | 13 | 10mm | 21mm | 25mm | 77mm | M220.75 |
| BEK-14-1064-A | 1064nm | 14 | 10mm | 21mm | 25mm | 77mm | M220.75 |
| BEK-15-1064-A | 1064nm | 15 | 10mm | 21mm | 25mm | 77mm | M220.75 |
| BEK-20-1064-A | 1064nm | 20 | 10mm | 21mm | 25mm | 77mm | M220.75 |
| BEK-5-1064-B | 1064nm | 5 | 6mm | 16mm | 25.4mm | 41mm | 四孔4-?4.6 |
| BEK-2.5-1064-G-WC | 1064nm | 2.5 | 10mm | 33mm | 54mm | 74.5mm | M220.75?42 |
| BEK-3-1064-G-WC | 1064nm | 3 | 10mm | 33mm | 54mm | 91.5mm | M220.75?42 |
| BEK-4-1064-G-WC | 1064nm | 4 | 10mm | 33mm | 54mm | 104.53mm | M220.75?42 |
| BEK-5-1064-G-WC | 1064nm | 5 | 10mm | 33mm | 68mm | 108mm | M220.75?42 |
BEC系列固定倍率激光擴束鏡
| 型號 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 鏡筒外徑 | 長度 | 螺紋連接 |
| BEC-1064-D23:41.76-1.5X | 1.5 | 11mm | 22mm | 35.0mm | 41.8mm | M22*0.75 |
| BEC-1064-D32:54.27-1.7X | 1.7 | 20mm | 30mm | 35mm | 54.3mm | M22*0.75 |
| BEC-1064-D23:42.4-2X | 2.0 | 14.5mm | 22mm | 35.0mm | 42.4mm | M22*0.75 |
| BEC-1064-D28:72.73-2.5X | 2.5 | 11mm | 26mm | 35.0mm | 72.7mm | M22*0.75 |
| BEC-1064-D21.5：63.6-3X | 3.0 | 8.5mm | 22mm | 27.0mm | 68.0mm | M22*0.75 |
| BEC-1064-D23：76-4X | 4 | 10mm | 22mm | 27.0mm | 76.0mm | M22*0.75 |
| BEC-1064-D23：72-5X | 5 | 10mm | 22mm | 27.0mm | 72.0mm | M22*0.75 |
| BEC-1064-D23：74-6X | 6 | 10mm | 22mm | 27.0mm | 74.0mm | M22*0.75 |
| BEC-1064-D23：68-8X | 8 | 10mm | 22mm | 27.0mm | 68.0mm | M22*0.75 |
| BEC-1064-D23：69.5-10X | 10 | 10mm | 22mm | 27.0mm | 69.5mm | M22*0.75 |
| BEC-1064-D23：75-12X | 12 | 6mm | 22mm | 27.0mm | 75.0mm | M22*0.75 |
| BEC-1064-D23：87-15X | 15 | 6mm | 22mm | 27.0mm | 87.0mm | M22*0.75 |
| BEC-(1030-1090)-D23:37.5-1.5X | 1.5 | 12mm | 23mm | 27mm | 37.5mm | M22*0.75 |
| BEC-(1030-1090)-D26:45-1.5X-A | 1.5 | 18mm | 26mm | 44mm | 45mm | M30*1;M22*0.75 |
| BEC-(1030-1090)-D53:118.6-2X-A | 2 | 30mm | 53mm | 49mm | 118.6mm | M30*1 |
| BEC-(1030-1090)-D37:118.5-2X-A-WC | 2 | 18mm | 37mm | 59mm | 118.5mm | M30*1 |
BEG系列固定倍率激光擴束鏡
| 型號 | 波長 | 倍數 | 入射通光口徑 | 出射通光口徑 | 擴束鏡總長度 | 擴束鏡直徑 | 入射螺紋連接 | 出射螺紋連接 |
| BEG-633-2X | 633nm | 2X | 8mm | 18mm | 59.65mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-3X | 633nm | 3X | 8mm | 18mm | 60.42mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-4X | 633nm | 4X | 8mm | 18mm | 60.06mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-5X | 633nm | 5X | 8mm | 18mm | 59.57mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-6X | 633nm | 6X | 8mm | 18mm | 59.92mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-8X | 633nm | 8X | 6mm | 18mm | 60.43mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-10X | 633nm | 10X | 6mm | 18mm | 60.65mm | 30mm | M22X0.75 | M30X1 |
| BEG-633-15X | 633nm | 15X | 8mm | 18mm | 99.1mm | 30mm | M22X0.75 | - |
| BEG-633-20X | 633nm | 20X | 8mm | 30mm | 102.19mm | 45mm | M30X1 | M43X0.75 |
| BEG-633-30X | 633nm | 30X | 8mm | 32mm | 149.81mm | 45mm | M22X0.75 | M43X0.75 |
| BEG-633-40X | 633nm | 40X | 8mm | 100mm | 232.6mm | 112mm | M22X0.75 | - |
BEH系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEH-532-1.5X | 532nm | 1.5 | 10.4mm | 21.6mm | 27mm | 39.2mm | M22×0.75 |
| BEH-532-2X | 532nm | 2 | 10.4mm | 21.6mm | 27mm | 46.5mm | M22×0.75 |
| BEH-532-3X | 532nm | 3 | 10.4mm | 21.6mm | 27mm | 66.5mm | M22×0.75 |
| BEH-532-4X | 532nm | 4 | 10.4mm | 21.6mm | 27mm | 74mm | M22×0.75 |
| BEH-532-5X | 532nm | 5 | 10.4mm | 21.6mm | 27mm | 70.2mm | M22×0.75 |
| BEH-532-6X | 532nm | 6 | 6mm | 21.6mm | 27mm | 71.8mm | M22×0.75 |
| BEH-532-7X | 532nm | 7 | 6mm | 21.6mm | 27mm | 64mm | M22×0.75 |
| BEH-532-8X | 532nm | 8 | 6mm | 21.6mm | 27mm | 68mm | M22×0.75 |
| BEH-532-10X | 532nm | 10 | 6mm | 21.6mm | 27mm | 77.7mm | M22×0.75 |
| BEH-532-12X | 532nm | 12 | 6mm | 21.6mm | 27mm | 72mm | M22×0.75 |
| BEH-532-15X | 532nm | 15 | 6mm | 21.6mm | 27mm | 81.2mm | M22×0.75 |
BEW系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 可調發散角 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-532-1.5X | 532nm | 1.5 | 7mm | 10.5mm | ±5mm | 30mm | 68.8mm | M22X0.75 |
| BEW-532-2X2-V1 | 532nm | 2 | 4mm | 8mm | ±5mm | 33mm | 61.5mm | M22X0.75 |
| BEW-532-2XA | 532nm | 2 | 4mm | 8mm | ±5mm | 30mm | 82.68mm | M22X0.75 |
| BEW-532-3XA | 532nm | 3 | 4mm | 12mm | ±5mm | 30mm | 79.35mm | M22X0.75 |
| BEW-532-4X1 | 532nm | 4 | 5mm | 20mm | ±5mm | 30mm | 83.2mm | M23X0.75 |
| BEW-532-5XI | 532nm | 5 | 3mm | 15mm | ±5mm | 30mm | 85.32mm | M22X0.75 |
| BEW-532-6X1 | 532nm | 6 | 3mm | 18mm | ±5mm | 30mm | 83.2mm | M30X0.5 |
| BEW-532-8X1 | 532nm | 8 | 2mm | 16mm | - | 25mm | 67mm | M22X0.75 |
| BEW-532-1 OXI | 532nm | 10 | 1mm | 10mm | ±5mm | 30mm | 85.32mm | M22X0.75 |
| BEW-532-12X-D2 | 532nm | 12 | 2mm | 24mm | ±3mm | 33mm | 120mm | M22X0.75 |
| BEW-532-15X | 532nm | 15 | 1mm | 15mm | ±5mm | 45mm | 84.96mm | M30X1 |
BEG系列固定倍率激光擴束鏡
| 型號 | 波長 | 倍數 | 入射通光口徑 | 出射通光口徑 | 擴束鏡總長度 | 擴束鏡直徑 | 入射螺紋連接 | 出射螺紋連接 |
| BEG-532-2X | 532 | 2X | 8mm | 18mm | 59.26mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-3X | 532 | 3X | 8mm | 18mm | 60.02mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-4X | 532 | 4X | 8mm | 18mm | 59.66mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-5X | 532 | 5X | 8mm | 18mm | 59.17mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-6X | 532 | 6X | 8mm | 18mm | 59.52mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-8X | 532 | 8X | 6mm | 18mm | 60.1mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-10X | 532 | 10X | 6mm | 18mm | 60.24mm | 30mm | M22X0.75 | M30X1 |
| BEG-532-15X | 532 | 15X | 8mm | 18mm | 99.1mm | 30mm | M22X0.75 | - |
| BEG-532-20X | 532 | 20X | 8mm | 30mm | 102.19mm | 45mm | M30X1 | M43X0.75 |
| BEG-532-30X | 532 | 30X | 8mm | 32mm | 149.81mm | 45mm | M22X0.75 | M43X0.75 |
| BEG-532-40X | 532 | 40X | 8mm | 100mm | 232.6mm | 112mm | M22X0.75 | - |
BEK系列固定倍率激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-2-532-A | 532nm | 2 | 14mm | 21mm | 25mm | 41mm | M220.75 |
| BEK-3-532-A | 532nm | 3 | 10mm | 21mm | 25mm | 65mm | M220.75 |
| BEK-4-532-A | 532nm | 4 | 10mm | 21mm | 25mm | 68mm | M220.75 |
| BEK-5-532-A | 532nm | 5 | 11mm | 21.6mm | 25mm | 57mm | M220.75 |
| BEK-6-532-A | 532nm | 6 | 10mm | 21mm | 25mm | 67mm | M220.75 |
| BEK-7-532-A | 532nm | 7 | 10mm | 21mm | 25mm | 67mm | M220.75 |
| BEK-8-532-A | 532nm | 8 | 10mm | 21mm | 25mm | 69mm | M220.75 |
| BEK-10-532-A | 532nm | 10 | 10mm | 21mm | 25mm | 70mm | M220.75 |
| BEK-12-532-A | 532nm | 12 | 10mm | 21mm | 25mm | 76mm | M220.75 |
| BEK-13-532-A | 532nm | 13 | 10mm | 21mm | 25mm | 76mm | M220.75 |
| BEK-14-532-A | 532nm | 14 | 10mm | 21mm | 25mm | 76mm | M220.75 |
| BEK-15-532-A | 532nm | 15 | 10mm | 21mm | 25mm | 76mm | M220.75 |
| BEK-20-532-A | 532nm | 20 | 10mm | 21mm | 25mm | 76mm | M220.75 |
| BEK-2-532-B | 532nm | 2 | 6mm | 16mm | 25.4mm | 53.7mm | 四孔4-?4.6 |
| BEK-5-532-B | 532nm | 5 | 6mm | 16mm | 25.4mm | 35mm | 四孔4-?4.6 |
| BEK-8-532-B | 532nm | 8 | 6mm | 16mm | 25.4mm | 68mm | 四孔4-?4.6 |
| BEK-10-532-B | 532nm | 10 | 6 mm | 16mm | 25.4mm | 78mm | 四孔4-?4.6 |
BEC系列固定倍率激光擴束鏡
| 型號 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 鏡筒外徑 | 長度 | 螺紋連接 |
| BEC-532-D26:44.3-1.5X-A | 1.5 | 18mm | 26mm | 44mm | 44.3mm | M22*0.75 |
| BEC-532-D23:51.9-2.5X-A | 2.5 | 7mm | 23mm | 27mm | 51.9mm | M22*0.75 |
| BEC-532-D23:75-4X-A | 4 | 7mm | 23mm | 27mm | 75mm | M22*0.75 |
| BEC-532-D25:82-6X-A | 6 | 13.5mm | 25mm | 30mm | 82mm | M22*0.75 |
| BEC-532-D25:88.5-10X-A | 10 | 13.5mm | 25mm | 30mm | 88.5mm | M22*0.75 |
BEH系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEH-355-1.2X | 355nm | 1.2 | 6mm | 21.6mm | 27mm | 28.7mm | M22×0.75 |
| BEH-355-1.5X | 355nm | 1.5 | 6mm | 21.6mm | 27mm | 37.5mm | M22×0.75 |
| BEH-355-2X | 355nm | 2 | 6mm | 21.6mm | 27mm | 46.5mm | M22×0.75 |
| BEH-355-3X | 355nm | 3 | 6mm | 21.6mm | 27mm | 52mm | M22×0.75 |
| BEH-355-4X | 355nm | 4 | 6mm | 21.6mm | 27mm | 70.5mm | M22×0.75 |
| BEH-355-5X | 355nm | 5 | 6mm | 21.6mm | 27mm | 76mm | M22×0.75 |
| BEH-355-6X | 355nm | 6 | 6mm | 21.6mm | 27mm | 62mm | M22×0.75 |
| BEH-355-7X | 355nm | 7 | 6mm | 21.6mm | 27mm | 63mm | M22×0.75 |
| BEH-355-8X | 355nm | 8 | 6mm | 21.6mm | 27mm | 64.5mm | M22×0.75 |
| BEH-355-10X | 355nm | 10 | 6mm | 21.6mm | 27mm | 66mm | M22×0.75 |
| BEH-355-12X | 355nm | 12 | 6mm | 21.6mm | 27mm | 84.5mm | M22×0.75 |
| BEH-355-15X | 355nm | 15 | 6mm | 21.6mm | 27mm | 70.5mm | M22×0.75 |
| BEH-355-20X | 355nm | 20 | 6mm | 21.6mm | 27mm | 87.2mm | M22×0.75 |
BEW系列固定倍率激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 可調發散角 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-355-1.5X | 355nm | 1.5 | 6mm | 9mm | ±5mm | 46mm | 76.5mm | M30X1 |
| BEW-355-2X | 355nm | 2 | 6mm | 12mm | ±5mm | 46mm | 75.03mm | M30X1 |
| BEW-355-2.5X | 355nm | 2.5 | 6mm | 15mm | ±5mm | 36mm | 61mm | M30X1 |
| BEW-355-3X | 355nm | 3 | 6mm | 18mm | ±3mm | 46mm | 77.32mm | M30X1 |
| BEW-355-3X | 355nm | 3 | 6mm | 18mm | ±3mm | 46mm | 77.5mm | M22X0.75 |
| BEW-355-4X | 355nm | 4 | 6mm | 24mm | ±3mm | 46mm | 77.2mm | M30X1 |
| BEW-355-4X-V2 | 355nm | 4 | 6mm | 24mm | ±5mm | 46mm | 82mm | M30X1 |
| BEW-355-5X | 355nm | 5 | 4mm | 20mm | ±3mm | 46mm | 71mm | M22X0.75 |
| BEW-355-5Xi | 355nm | 5 | 4mm | 20mm | ±3mm | 46mm | 71mm | M30X1 |
| BEW-355-5Xi | 355nm | 5 | 4mm | 20mm | ±5mm | 38mm | 11mm | M22X0.75 |
| BEW-355-5X-LP | 355nm | 5 | 3mm | 15mm | - | 28mm | 62. 5mm | M22X0.75 |
| BEW-355-5X-V1 | 355nm | 5 | 5mm | 25mm | ±5mm | 46mm | 75mm | M30X1 |
| BEW-355-6X-D0.8 | 355nm | 6 | 2.5mm | 15mm | - | 28mm | 70mm | M22X0.75 |
| BEW-355-6XD1.6 | 355nm | 6 | 1.6mm | 9.6mm | - | 28mm | 93.66mm | M20X0.75 |
| BEW-355-6X-D3 | 355nm | 6 | 3mm | 18mm | 36mm | 85mm | M30X1 | |
| BEW-355-7X-VI | 355nm | 7 | 3mm | 21mm | ±5mm | 46mm | 93mm | M30X1 |
| BEW-355-8X | 355nm | 8 | 3mm | 24mm | - | 46mm | 84mm | M30X1 |
| BEW-355-8X | 355nm | 8 | 3mm | 24mm | ±3mm | 46mm | 84mm | M22X0.75 |
| BEW-355-8X-LP | 355nm | 8 | 2mm | 16mm | - | 21mm | 81.5mm | M22X0.75 |
| BEW-355-10X-V1 | 355nm | 10 | 2mm | 20mm | - | 36mm | 100mm | M22X0.75 |
| BEW-355-1OX-DO.8-LP | 355nm | 10 | 0.8mm | 8mm | - | 28mm | 71.5mm | M22X0.75 |
| BEW-355-10X-LP | 355nm | 10 | 0.8mm | 8mm | - | 27mm | 102.5mm | M22X0.75 |
| BEW-355-10X-V1 | 355nm | 10 | 2mm | 20mm | ±5mm | 46mm | 97mm | M30X1 |
| BEW-355-15X | 355nm | 15 | 0.8mm | 12mm | ±3mm | 44mm | 95mm | M22X0.75 |
| BEW-355-20XI | 355nm | 20 | 1mm | 20mm | ±5mm | 45mm | 96mm | M30X1 |
BEW系列固定倍率激光擴束鏡
| 型號 | 波長 | 倍數 | 入射通光口徑 | 出射通光口徑 | 擴束鏡總長度 | 擴束鏡直徑 | 入射螺紋連接 | 出射螺紋連接 |
| BEG-355-2X | 355nm | 2X | 8mm | 18mm | 57.71mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-3X | 355nm | 3X | 8mm | 18mm | 58.4mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-4X | 355nm | 4X | 8mm | 18mm | 58.07mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-5X | 355nm | 5X | 8mm | 18mm | 57.58mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-6X | 355nm | 6X | 8mm | 18mm | 57.96mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-8X | 355nm | 8X | 6mm | 18mm | 58.49mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-10X | 355nm | 10X | 6mm | 18mm | 58.62mm | 30mm | M22X0.75 | M30X1 |
| BEG-355-15X | 355nm | 15X | 8mm | 18mm | 99.1mm | 30mm | M22X0.75 | - |
| BEG-355-20X | 355nm | 20X | 8mm | 30mm | 102.19mm | 45mm | M30X1 | M43X0.75 |
BEK系列固定倍率激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-1.5-355-A | 355nm | 1.5 | 10mm | 21mm | 25mm | 43.5mm | M220.75 |
| BEK-2-355-A | 355nm | 2 | 10mm | 21mm | 25mm | 42mm | M220.75 |
| BEK-3-355-A | 355nm | 3 | 10mm | 21mm | 25mm | 60mm | M220.75 |
| BEK-4-355-A | 355nm | 4 | 10mm | 21mm | 25mm | 64mm | M220.75 |
| BEK-5-355-A | 355nm | 5 | 10mm | 21mm | 25mm | 66mm | M220.75 |
| BEK-6-355-A | 355nm | 6 | 10mm | 21mm | 25mm | 68mm | M220.75 |
| BEK-7-355-A | 355nm | 7 | 10mm | 21mm | 25mm | 70mm | M220.75 |
| BEK-8-355-A | 355nm | 8 | 10mm | 21mm | 25mm | 70mm | M220.75 |
| BEK-10-355-A | 355nm | 10 | 10mm | 21mm | 25mm | 71mm | M220.75 |
| BEK-12-355-A | 355nm | 12 | 10mm | 21mm | 25mm | 74mm | M220.75 |
| BEK-15-355-A | 355nm | 15 | 10mm | 21mm | 25mm | 76mm | M220.75 |
| BEK-5-355-B | 355nm | 5 | 6mm | 16mm | 25.4mm | 41mm | 四孔4-?4.6 |
| BEK-7-355-B | 355nm | 7 | 6mm | 16mm | 25.4mm | 60mm | 四孔4-?4.6 |
| BEK-8-355-B | 355nm | 8 | 6mm | 16mm | 25.4mm | 68mm | 四孔4-?4.6 |
| BEK-10-355-B | 355nm | 10 | 6mm | 16mm | 25.4mm | 89.367mm | 四孔4-?4.6 |
BEC系列固定倍率激光擴束鏡
| 型號 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 鏡筒外徑 | 長度 | 螺紋連接 |
| BEC-355-D25:668.1-2X-A | 2 | 13.5mm | 25mm | 30mm | 68.1mm | M22*0.75 |
| BEC-355-D25:67.7-3X-A | 3 | 13.5mm | 25mm | 30mm | 67.7mm | M22*0.75 |
| BEC-355-D25:77.5-4X-A | 4 | 13.5mm | 25mm | 30mm | 77.5mm | M22*0.75 |
| BEC-355-D25:72-5X-A | 5 | 13.5mm | 25mm | 30mm | 72mm | M22*0.75 |
| BEC-355-D25:84.8-6X-A | 6 | 13.5mm | 25mm | 30mm | 84.8mm | M22*0.75 |
| BEC-355-D25:68.1-8X-A | 8 | 13.5mm | 25mm | 30mm | 68.1mm | M22*0.75 |
| BEC-355-D25:69.6-10X-A | 10 | 13.5mm | 25mm | 30mm | 69.6mm | M22*0.75 |
| BEC-355-D25:85-12X-A | 12 | 13.5mm | 25mm | 30mm | 85mm | M22*0.75 |
| BEC-355-D23:62.7-3X | 3 | 7mm | 23mm | 27mm | 62.7mm | M22*0.75 |
| BEC-355-D23:72-4X | 4 | 7mm | 23mm | 27mm | 72mm | M22*0.75 |
| BEC-355-D23:75.7-5X | 5 | 7mm | 23mm | 27mm | 75.7mm | M22*0.75 |
| BEC-355-D23:81-6X | 6 | 12mm | 23mm | 27mm | 81mm | M22*0.75 |
| BEC-355-D23:65-8X | 8 | 7mm | 23mm | 27mm | 65mm | M22*0.75 |
| BEC-355-D23:67-10X | 10 | 7mm | 23mm | 27mm | 67mm | M22*0.75 |
BEG系列固定倍率激光擴束鏡
| 型號 | 倍數 | 波長 | 入射通光口徑 | 出射通光口徑 | 入射端擴束鏡直徑 | 出射端擴束鏡直徑 | 擴束鏡總長度 | 螺紋連接 | 材料 |
| BEG-KT-10.6-1 | 1 | 10.6μm | 16mm | 18mm | 36mm | 40mm | 54.9mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-1.5 | 1.5 | 10.6μm | 12mm | 15mm | 20mm | 20mm | 44.1mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-2Z | 2 | 10.6μm | 10mm | 15mm | 22mm | 22mm | 51mm | M15X0.75 | ZnSe |
| BEG-KT-10.6-21 | 2 | 10.6μm | 10mm | 22mm | 32mm | 32mm | 48mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-2ZG | 2 | 10.6μm | 10mm | 15mm | 22mm | 22mm | 51mm | M22X0.75 | Ge |
| BEG-KT-10.6-23 | 2 | 10.6μm | 10mm | 15mm | 36mm | 36mm | 48mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-24 | 2 | 10.6μm | 10mm | 15mm | 22mm | 22mm | 50mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-2.5Z | 2.5 | 10.6μm | 10mm | 16mm | 20mm | 20mm | 59mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-2.5Z1 | 2.5 | 10.6μm | 10mm | 20mm | 20mm | 20mm | 34mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-2.5Z2 | 2.5 | 10.6μm | 10mm | 20mm | 28mm | 28mm | 56mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-3Z1 | 3 | 10.6μm | 10mm | 16mm | 20mm | 20mm | 62mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-3Z2 | 3 | 10.6μm | 10mm | 20mm | 28mm | 28mm | 60mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-3Z3 | 3 | 10.6μm | 10mm | 16mm | 20mm | 20mm | 37mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-3Z4 | 3 | 10.6μm | 10mm | 25mm | 33mm | 33mm | 60mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-3Z5 | 3 | 10.6μm | 15mm | 35mm | 44mm | 44mm | 73mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-3Z6 | 3 | 10.6μm | 15mm | 28mm | 36mm | 36mm | 60mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-4Z | 4 | 10.6μm | 10mm | 16mm | 20mm | 20mm | 59mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-4Z1 | 4 | 10.6μm | 10mm | 20mm | 28mm | 28mm | 70mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-4Z2 | 4 | 10.6μm | 15mm | 28mm | 36mm | 36mm | 66mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-4Z3 | 4 | 10.6μm | 10mm | 20mm | 26mm | 32mm | 70mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-5Z | 5 | 10.6μm | 10mm | 16mm | 20mm | 20mm | 59mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-5Z1 | 5 | 10.6μm | 13mm | 23mm | 30mm | 30mm | 71mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-5Z2 | 5 | 10.6μm | 15 mm | 28mm | 36mm | 36mm | 71mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-6Z | 6 | 10.6μm | 11mm | 26mm | 32mm | 32mm | 71mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-6Z1 | 6 | 10.6μm | 10mm | 36mm | 44mm | 44mm | 60mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-6Z2 | 6 | 10.6μm | 10mm | 15mm | 20mm | 20mm | 75mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-7 | 7 | 10.6μm | 10mm | 17mm | 20mm | 20mm | 60mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-8Z1 | 8 | 10.6μm | 13mm | 33mm | 44mm | 44mm | 118mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-8Z2 | 8 | 10.6μm | 10.5mm | 23.5mm | 30mm | 30mm | 64.9mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-10A | 10 | 10.6μm | 10mm | 50mm | 46mm | 64mm | 119.8mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-10B | 10 | 10.6μm | 10mm | 36mm | 44mm | 44mm | 125mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-12 | 12 | 10.6μm | 10mm | 36mm | 33mm | 50mm | 109mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-15 | 15 | 10.6μm | 10mm | 40mm | 33mm | 53mm | 118mm | M22X0.75 | ZnSe |
| BEG-KT-10.6-20 | 20 | 10.6μm | 10mm | 52mm | 33mm | 65mm | 144mm | M22X0.75 | ZnSe |
BEK系列固定倍率激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-KT-2-10.6-C | 10.6μm | 2 | 8mm | 20mm | 46mm | 52.2mm | M301+M430.75 |
| BEK-KT-2.5-10.6-C | 10.6μm | 2.5 | 6mm | 20mm | 46mm | 67mm | M301+M430.75 |
| BEK-KT-3-10.6-C | 10.6μm | 3 | 6mm | 20mm | 46mm | 73mm | M301+M430.75 |
| BEK-KT-4-10.6-C | 10.6μm | 4 | 4mm | 20mm | 46mm | 79mm | M301+M430.75 |
| BEK-KT-4-10.6-2-C | 10.6μm | 4 | 6mm | 28mm | 46mm | 78mm | M301+M430.75 |
| BEK-KT-8-10.6-C | 10.6μm | 8 | 8mm | 32mm | 46mm | 81.5mm | M301+M430.75 |
| BEK-KT-4-1064 | 10.6μm | 4 | 8mm | 33mm | 54mm | 101.5mm | M301 |
| BEK-KT-6-1064 | 10.6μm | 6 | 10mm | 33mm | 54mm | 101.5mm | M301 |
| BEK-KT-8-1064 | 10.6μm | 8 | 8mm | 33mm | 54mm | 101.5mm | M301 |
BEH系列可調發散角激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEH-KT-1064-1.5X | 1064nm | 1.5 | 10.4mm | 21.6mm | 27mm | 39.2mm | M22×0.75 |
| BEH-KT-1064-2X | 1064nm | 2 | 10.4mm | 21.6mm | 27mm | 46.5mm | M22×0.75 |
| BEH-KT-1064-3X | 1064nm | 3 | 10.4mm | 21.6mm | 27mm | 66.5mm | M22×0.75 |
| BEH-KT-1064-4X | 1064nm | 4 | 10.4mm | 21.6mm | 27mm | 74mm | M22×0.75 |
| BEH-KT-1064-5X | 1064nm | 5 | 10.4mm | 21.6mm | 27mm | 70.2mm | M22×0.75 |
| BEH-KT-1064-6X | 1064nm | 6 | 6mm | 21.6mm | 27mm | 71.8mm | M22×0.75 |
| BEH-KT-1064-8X | 1064nm | 8 | 6mm | 21.6mm | 27mm | 65.5mm | M22×0.75 |
| BEH-KT-1064-10X | 1064nm | 10 | 6mm | 21.6mm | 27mm | 68mm | M22×0.75 |
| BEH-KT-1064-12X | 1064nm | 12 | 6mm | 21.6mm | 27mm | 77.7mm | M22×0.75 |
| BEH-KT-1064-15X | 1064nm | 15 | 6mm | 21.6mm | 27mm | 72mm | M22×0.75 |
| BEH-KT-1064-20X | 1064nm | 20 | 6mm | 21.6mm | 27mm | 81.2mm | M22×0.75 |
| BEH-KT-1064-22X | 1064nm | 22 | 6mm | 21.6mm | 27mm | 92.3mm | M22×0.75 |
BEK系列可調發散角激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-KT-1.5-1064-C | 1064nm | 1.5 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-2-1064-C | 1064nm | 2 | 16mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-2.5-1064-C | 1064nm | 2.5 | 16mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-3-1064-C | 1064nm | 3 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-4-1064-C | 1064nm | 4 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-5-1064-C | 1064nm | 5 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-6-1064-C | 1064nm | 6 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-7-1064-C | 1064nm | 7 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-8-1064-C | 1064nm | 8 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-10-1064-C | 1064nm | 10 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-12-1064-C | 1064nm | 12 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-14-1064-C | 1064nm | 14 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-15-1064-C | 1064nm | 15 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-0.5-1064-D | 1064nm | 0.5 | 16mm | 29mm | 36mm | 57.54mm | M241 |
| BEK-KT-1.2-1064-D | 1064nm | 1.2 | 12mm | 20mm | 36mm | 57.5mm | M241 |
| BEK-KT-1.5-1064-D | 1064nm | 1.5 | 12mm | 21.5mm | 36mm | 60.6mm | M241 |
| BEK-KT-1.8-1064-D | 1064nm | 1.8 | 16mm | 21.5mm | 36mm | 60.6mm | M241 |
| BEK-KT-2-1064-D | 1064nm | 2 | 12mm | 21.5mm | 36mm | 62.5mm | M241 |
| BEK-KT-3-1064-D | 1064nm | 3 | 12mm | 21.5mm | 36mm | 63mm | M241 |
| BEK-KT-3-1064-H | 1064nm | 3 | 10mm | 33mm | 54mm | 101.5mm | M301 |
| BEK-KT-4-1064-H | 1064nm | 4 | 10mm | 33mm | 54mm | 101.5mm | M301 |
BEH系列可調發散角激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEH-KT-532-1.5X | 532nm | 1.5 | 10.4mm | 21.6mm | 27mm | 39.7mm | M22×0.75 |
| BEH-KT-532-2X | 532nm | 2 | 10.4mm | 21.6mm | 27mm | 68.5mm | M22×0.75 |
| BEH-KT-532-3X | 532nm | 3 | 10.4mm | 21.6mm | 27mm | 76mm | M22×0.75 |
| BEH-KT-532-4X | 532nm | 4 | 10.4mm | 21.6mm | 27mm | 71.8mm | M22×0.75 |
| BEH-KT-532-5X | 532nm | 5 | 10.4mm | 21.6mm | 27mm | 74mm | M22×0.75 |
| BEH-KT-532-6X | 532nm | 6 | 6mm | 21.6mm | 27mm | 68mm | M22×0.75 |
| BEH-KT-532-8X | 532nm | 8 | 6mm | 21.6mm | 27mm | 71.5mm | M22×0.75 |
| BEH-KT-532-10X | 532nm | 10 | 6mm | 21.6mm | 27mm | 77.7mm | M22×0.75 |
| BEH-KT-532-12X | 532nm | 12 | 6mm | 21.6mm | 27mm | 74mm | M22×0.75 |
| BEH-KT-532-15X | 532nm | 15 | 6mm | 21.6mm | 27mm | 83mm | M22×0.75 |
| BEH-KT-532-20X | 532nm | 20 | 6mm | 21.6mm | 27mm | 92.3mm | M22×0.75 |
BEK系列可調發散角激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-KT-1.5-532-C | 532nm | 1.5 | 20mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-2-532-C | 532nm | 2 | 20mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-3-532-C | 532nm | 3 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-4-532-C | 532nm | 4 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-5-532-C | 532nm | 5 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-6-532-C | 532nm | 6 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-7-532-C | 532nm | 7 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-8-532-C | 532nm | 8 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-10-532-C | 532nm | 10 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-12-532-C | 532nm | 12 | 12mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-15-532-C | 532nm | 15 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-20-532-C | 532nm | 20 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
BEH系列可調發散角激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEH-KT-355-2X | 355nm | 2 | 6mm | 21.6mm | 27mm | 46.5mm | M22×0.75 |
| BEH-KT-355-3X | 355nm | 3 | 6mm | 21.6mm | 27mm | 52mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-4X | 355nm | 4 | 6mm | 21.6mm | 27mm | 70.5mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-5X | 355nm | 5 | 6mm | 21.6mm | 27mm | 76mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-6X | 355nm | 6 | 6mm | 21.6mm | 27mm | 62mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-7X | 355nm | 7 | 6mm | 21.6mm | 27mm | 63mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-8X | 355nm | 8 | 6mm | 21.6mm | 27mm | 64.5mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-10X | 355nm | 10 | 6mm | 21.6mm | 27mm | 66mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-12X | 355nm | 12 | 6mm | 21.6mm | 27mm | 84.5mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-15X | 355nm | 15 | 6mm | 21.6mm | 27mm | 70.5mm | M22×0.75法蘭4孔4-Φ4.6 |
| BEH-KT-355-20X | 355nm | 20 | 6mm | 21.6mm | 27mm | 87.2mm | M22×0.75 |
BEK系列可調發散角激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-KT-1.1-355-2-M301 | 355nm | 正1.1/反0.9 | 14mm | 16mm | 41mm | 75.5mm | M301 |
| BEK-KT-1.5-355-2-M301 | 355nm | 正1.5/反0.66 | 14mm | 16mm | 41mm | 75.5mm | M301 |
| BEK-KT-1.5-355-C | 355nm | 1.5 | 20mm | 33mm | 46mm | 88mm | M301+M430.5 |
| BEK-KT-2-355-C | 355nm | 2 | 20mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-2.5-355-C | 355nm | 2.5 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-3-355-C | 355nm | 3 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-3.5-355-C | 355nm | 3.5 | 10mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-4-355-C | 355nm | 4 | 8mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-5-355-C | 355nm | 5 | 8mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-6-355-C | 355nm | 6 | 8mm | 33mm | 46mm | 80.5mm | M301+M430.5 |
| BEK-KT-7-355-C | 355nm | 7 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-8-355-C | 355nm | 8 | 12mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-10-355-C | 355nm | 10 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-12-355-C | 355nm | 12 | 12mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-14-355-C | 355nm | 14 | 12mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-15-355-C | 355nm | 15 | 10mm | 33mm | 46mm | 85mm | M301+M430.5 |
| BEK-KT-20-355-C | 355nm | 20 | 10mm | 33mm | 46mm | 92mm | M301+M430.5 |

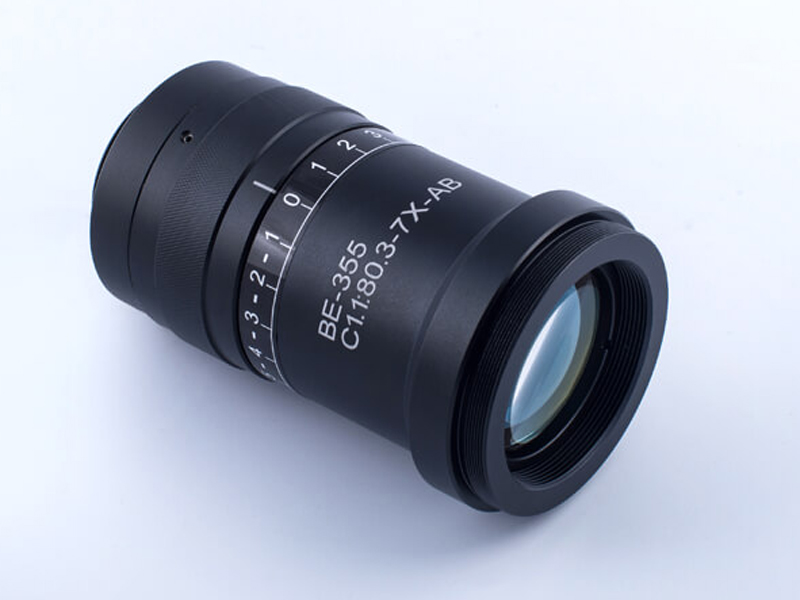

BEC系列可調發散角激光擴束鏡
| 產品規格 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 鏡筒外徑 | 長度 | 螺紋連接 |
| BEC-KT-355-D30:84.5-3X-A | 3 | 10mm | 30mm | 46mm | 84.5mm | M30*1-M43*0.5 |
| BEC-KT-355-D33:84.5-5X-A | 5 | 10mm | 33mm | 46mm | 84.5mm | M30*1-M43*0.5 |
| BEC-K -355-D33:80.3-7X-A | 7 | 10mm | 33mm | 46mm | 80.3mm | M30*1-M43*0.5 |
| BEC-KT-355-D30:90-8X-A | 8 | 10mm | 30mm | 46mm | 90mm | M30*1-M43*0.5 |
| BEC-KT-355-D30:72-10X-A | 10 | 10mm | 30mm | 46mm | 72mm | M30*1-M43*0.5 |

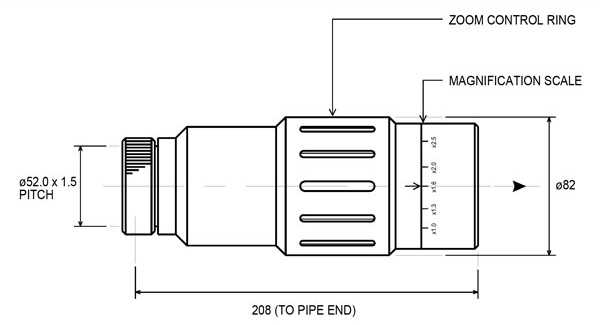

BE12變焦擴束鏡
BEZ12型變焦擴束鏡設計用于具有高達10mm全光束直徑和600W連續功率的CO2 激光器。變焦擴束鏡可與聚焦透鏡結合使用，通過改變進入聚焦透鏡的光束的直徑和發散度，在焦點處產生可變光斑尺寸。典型應用可能是輸入激光束直徑相對較小的長、可變路徑系統。
技術規格尺寸：
對焦范圍：無焦（出廠設置）
變焦范圍：x1.0到x3.5連續可變
輸出通光孔徑：46mm直徑
輸入通光孔徑：21mm，13.1mm 可用M=x3.5
光束壓縮比：2.5:1
配件：直徑 52mm，x 1.5mm間距 F/M 螺紋
光束漂移：最大3弧分
重量：1.8kg
冷卻：風冷
BEZ5變焦擴束鏡
BEZ5變焦擴束鏡具有聚焦和變焦放大控制。它設計用于具有高達6mm光束直徑和500W連續功率的CO2激光器。聚焦控制與可變放大倍率相結合，使BEZ5型的用戶能夠根據各種輸入光束參數實現理想的激光束條件。BEZ5設計用于各種型號的密封波導激光器，例如Synrad。
BEZ5型的特點包括：
良好的光束指向精度
從 -2M 到 +1M 的焦點控制
低梁壓縮比
技術規格尺寸：
對焦范圍：+1.0m，從“無限遠”到-2.0m
縮放范圍：x2.5到 x5.0，連續可變
輸出通光孔徑：直徑26mm
輸入通光孔徑：14mm，（在 M= x5.0 時可用 5.2mm）
光束壓縮比：0.4:1
接頭（輸入端）：52mm 直徑x 1.5mm 螺距 F/M 螺紋
光束漂移：<2 弧分
重量：1.2 kg
冷卻：風冷

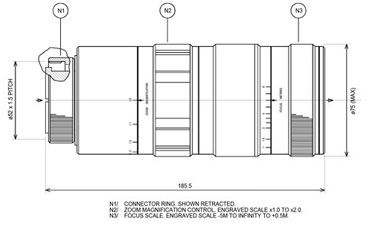

BEZ10 變焦擴束鏡
BEZ10變焦擴束鏡具有變焦和聚焦控制。它設計用于具有高達12mm光束直徑和1000W連續功率的CO2激光器。聚焦控制與可變放大倍率相結合，使BEZ10型號的用戶能夠根據各種輸入光束參數實現理想的激光束條件。BEZ10設計用于與Coherent 'Diamond'系列等激光器配合使用，以幫助找到最佳加工條件。
BEZ10 型號的顯著特點：
良好的光束指向精度。
輸出光束焦點控制到 500mm 焦點
低梁壓縮比
技術規格
對焦范圍：+0.5m，從“無限遠”到-5m
縮放范圍：x1.0 到 x2.0，連續可變
輸出通光孔徑：直徑25mm
輸入通光孔徑：22mm，（12.5mm 可用 M= x2.0）
光束壓縮比：1:1
接頭（輸入端）：直徑52mm。x 1.5mm間距F/M螺紋
光束漂移：<2弧分。
重量：1.2kg
冷卻：風冷

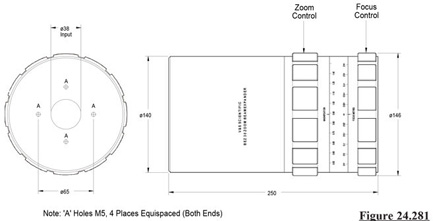

BEZ30變焦擴束鏡
BEZ30變焦擴束鏡是一款具有低光束壓縮比的高規格裝置，設計用于具有高達30mm全光束直徑和 3000W連續功率的CO2激光器。聚焦控制與可變放大倍率相結合，使BEZ30型號的用戶能夠根據各種輸入光束參數實現理想的激光束條件。BEZ30最初設計用于在使用雙焦點光學器件時為用戶提供工藝參數控制。
BEZ30 型號的一些重要特點是：
出色的光束指向精度
輸出光束聚焦控制
強制氣體冷卻
技術規格
對焦范圍：+4M，從“無限遠”到 -4M
變焦范圍（放大倍數）：x0.50 到 x1.40，連續可變
輸出通光孔徑：直徑50mm
輸入通光孔徑：38mm，（35.7mm 可在 M= x1 時使用.4)
光束壓縮比：最大 2:1（-ve / +ve / -ve 設計）
配件（2 端）：M5 分接 4 個，65.0 pcd
光束漂移：<30 弧秒
重量：3.5 kg
冷卻：強制氣體冷卻

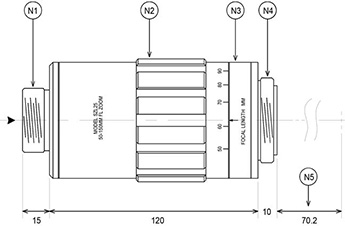

SZL25變焦鏡頭組件
SZL25變焦鏡頭設計用于功率高達1000W的CO2激光，具體取決于輸入光束直徑。它具有25mm的清晰輸入直徑和固定焦平面上50mm至150mm的變焦焦距范圍。對于給定的輸入光束，3:1 的焦距范圍產生 9:1 的能量密度和焦深范圍。在由激光操作員手動控制的變焦動作期間，系統通常不需要改變z軸設置或改變氣體噴嘴。SZL25 型具有與標準 1.1 英寸直徑已安裝鏡頭（例如11ZLF和11TF類型）完全相同的機械配件。
技術規格
變焦范圍：49.4 毫米至 152.3mm
雕刻范圍：50.0mm 至 150.0mm
光束壓縮比：1.7：1
輸入配件：1.5″x12TPI UNF 2A
輸出接頭：1.875″x 20TPI UNF
輸入孔徑：直徑25.0mm
最大氣壓：200psi，安全系數>2
對中：< 5 arc min
冷卻：空氣或通過WMA的間接水冷卻
BEW系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-BB-9.4-1X-4X-V1 | 10.6um | 1-4X | 9mm | 36mm | 87mm | 196.5mm | M45*l |
| BEW-BB-9.4-2-8X-V1 | 9.4um | 2-8X | 4mm | 32mm | 57mm | 179mm | - |
| BEW-BB-10.6-1-4X-A | 10.6um | 1-4X | 9mm | 36mm | 65.5mm | 134mm | - |
| BEW-BB-10.6-2-8X-V1 | 10.6um | 2-8X | 4mm | 32mm | 50mm | 168.15mm | - |
BEG列連續變倍激光擴束鏡
| 型號 | 倍數 | 入射通光口徑 | 出射通光口徑 | 長度 |
| BEG-BB-10.6-2-6X | 2X-6X | 16mm | 96mm | 206-213mm |
| BEG-BB-10.6-2-8X | 2X-8X | 10mm | 36mm | 168-172mm |
BEH系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 固定方式 |
| BEH-BB-2-10X-1064 | 1064nm | 2-10X | 10mm | 28mm | 40mm | 161-171mm | 中部固定?37.6 |
BEW系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-BB-1064-1-3X | 1064nm | 1-3X | 8mm | 24mm | 37.6mm | 102.35mm | M22*0.75 |
| BEW-BB-1064-1-4X-D8 | 1064nm | 1-4X | 8mm | 32mm | 71mm | 230mm | M39*0.75 |
| BEW-BB-1064-2-8V | 1064nm | 2-8X | 3. 0-6.0mm | 28mm | 56mm | 158.5mm | M29*0.75 |
| BEW-BB-1064-2-8X-V-01 | 1064nm | 2-8X | 3.5mm | 28mm | 42mm | 143.3mm | - |
| BEW-BB-1064-2-10XQ | 1064nm | 2-10X | 3. 0-8.0mm | 30mm | 43mm | 164mm | - |
| BEW-BB-1064-10X-MOT | 1064nm | 10X | 1.5mm | 15mm | 110*63mm | 81.5mm | - |
| BEW-BB-1064-1X-D8-MOT | 1064nm | 1X | 8mm | 8mm | 84*65mm | 66mm | - |
| BEW-BB-1064-1-8X-MOT-V3 | 1064nm | 1-8X | 3mm | 24mm | 75.5*71.5mm | 188mm | - |
BEG系列連續變倍激光擴束鏡
| 型號 | 倍數 | 入射通光口徑 | 出射通光口徑 | 長度 |
| BEG-BB-1064-2-8X | 2-8 | 10mm | 30mm | 143-150mm |
| BEG-BB-1064-2-8X-B | 2-8 | 13mm | 60mm | 170mm |
BEK系列連續變倍激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-BB-1-2-1064 | 1064nm | 1-2X | 20mm | 20mm | 42mm | 114mm | M301+M430.5+?46 |
| BEK-BB-1-3-1064 | 1064nm | 1-3X | 10mm | 20mm | 46mm | 87.7mm | C-M+M430.5+?46 |
| BEK-BB-1-4-1064 | 1064nm | 1-4X | 8mm | 30mm | 46mm | 155mm | M301+M430.5+?46 |
| BEK-BB-2-8-1064 | 1064nm | 2-8X | 12mm | 32mm | 42mm | 153mm | ?37.6 |
BEH系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 固定方式 |
| BEH-BB-2-10X-532 | 532nm | 2-10X | 10mm | 28mm | 40mm | 156-168mm | 中部固定?37.6 |
BEW系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-BB-532-2-8v-01 | 532nm | 2-8X | 2. 0-5.0mm | 21mm | 42mm | 139.9mm | - |
| BEW-BB-532-2-10X | 532nm | 2-10X | 3. 0-8.0mm | 30mm | 55mm | 172mm | M30*l |
| BEW-BB-532-2-10X-V1 | 532nm | 2-10X | 3. 0-8.0mm | 30mm | 43mm | 160mm | - |
| BEW-BB-532-1-4X-G-MOT | 532nm | 1-4X | 5mm | 20mm | 58*70mm | 168mm | - |
BEG系列連續變倍激光擴束鏡
| 型號 | 倍數 | 入射通光口徑 | 出射通光口徑 | 長度 |
| BEG-BB-532-2-8X | 2-8X | 10mm | 30mm | 132mm |
| BEG-BB-532-2-8X-B | 2-8X | 11mm | 60mm | 190mm |
BEG系列連續變倍激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-BB-1-4-532 | 532nm | 1-4X | 8mm | 30mm | 46mm | 150mm | M301+M430.5+?46 |
| BEK-BB-2-8-532 | 532nm | 2-8X | 12mm | 32mm | 42mm | 169mm | ?37.6 |
BEH系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 固定方式 |
| BEH-BB-2-10X-355 | 355nm | 2-10X | 10mm | 28mm | 40mm | 152-162mm | 中部固定?37.6 |
BEW系列連續變倍激光擴束鏡
| 型號 | 波長 | 擴大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEW-BB-355-1-3X-G | 355nm | 1-3X | 5. 0-9.0mm | 15mm | 50mm | 120mm | M46*l |
| BEW-BB-355-1-3X-V1 | 355nm | 1-3X | 7mm | 21mm | 44mm | 107mm | M24*0. 75 |
| BEW-BB-355-2-8V | 355nm | 2-8X | 2. 0-4.0mm | 18mm | 56mm | 158.5mm | M29*0. 75 |
| BEW-BB-355-2-10X-V1 | 355nm | 2-10X | 3. 0-8.0mm | 30mm | 43mm | 155mm | - |
| BEW-BB-355-1-8X-MOT-V3 | 355nm | 1-8X | 2mm | 16mm | 95.5*71.5mm | 188mm | - |
BEG系列連續變倍激光擴束鏡
| 型號 | 倍數 | 入射通光口徑 | 出射通光口徑 | 長度 |
| BEG-BB-355-2-8X | 2-8X | 10mm | 30mm | 143-150mm |
| BEG-BB-355-2-8X-B | 2-8X | 11mm | 60mm | 185-194mm |
BEK系列連續變倍激光擴束鏡
| 型號 | 波長 | 放大倍數 | 入射通光口徑 | 出射通光口徑 | 最大鏡筒外徑 | 鏡頭長度 | 螺紋連接 |
| BEK-BB-1-4-355 | 355nm | 1-4X | 8mm | 30mm | 46mm | 144mm | M301+M430.5+?37.6 |
| BEK-BB-2-8-355 | 355nm | 2-8X | 12mm | 33mm | 42mm | 164mm | ?37.6 |
上一個產品
下一個產品
